Introducing DiagView

As developers, we love clear documentation. Use Case diagrams, Cloud Architectures, Flowcharts — they are the lifeblood of understanding complex systems. Tools like Mermaid.js, PlantUML, and Draw.io are fantastic for creating them.

But viewing them? That experience is often stuck in the past.

If you export a complex architecture diagram as an SVG and embed it on your docs site, it’s just a static image. The text is too small to read, you can’t search for that one specific microservice, and if you zoom with your browser, the whole page breaks.

I looked for a library to solve this. I found D3.js (too complex for just viewing) and Leaflet (too heavy for a diagram). I didn’t want to write hundreds of lines of code just to let a user zoom into a flowchart.

So, I built DiagView.

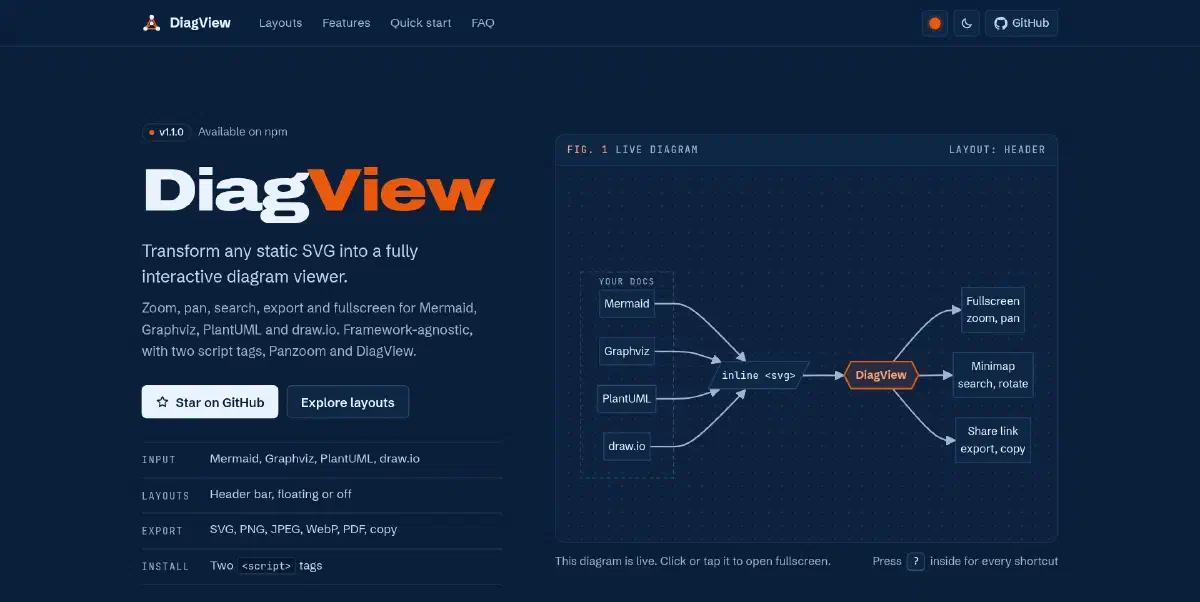

Demo

#

What is DiagView?

#

DiagView is a feature-rich, interactive wrapper that gives your static SVGs superpowers.

It is built on top of the excellent panzoom library, which handles the low-level matrix math for smooth 60fps zooming and panning. But while panzoom gives you the engine, DiagView gives you the entire car.

Feature Overview

#

The Landscape: Why Wasn’t This Already Solved?

#

Before writing any code, I scoured npm and GitHub. Here’s what I found:

D3.js — The titan of data visualization. But D3 is for creating graphics from data, not for viewing pre-made SVGs.

svg-pan-zoom — A focused library for adding pan/zoom to SVGs. But it’s just the engine — no UI, no search, no export.

Leaflet.js — The standard for interactive maps. Overkill for a simple flowchart.

The gap was clear: I needed a batteries-included solution — something that would just work with a single init() call.

Quick Start

#

CDN (Fastest)

#

<!-- Panzoom (required for zoom/pan) -->
<script src="https://cdn.jsdelivr.net/npm/@panzoom/[email protected]/dist/panzoom.min.js"></script>

<!-- DiagView -->
<script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/diagview.umd.min.js"></script>

<!-- Your diagram -->
<div class="diagram">
  <svg><!-- Your SVG content --></svg>
</div>

<!-- Initialize -->
<script>
  DiagView.init();
</script>

NPM

#

npm install diagview @panzoom/panzoom

import DiagView from 'diagview';

DiagView.init({
  layout: 'floating',
  accentColor: '#3b82f6',
});

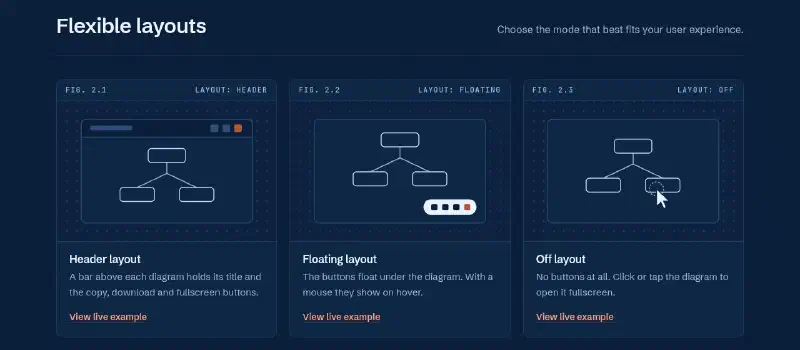

Flexible Layouts

#

DiagView supports three layout modes to fit your design:

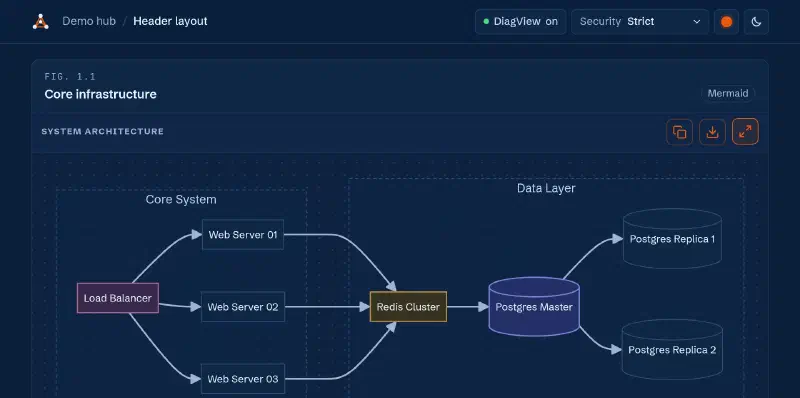

Header Layout

#

A full-width toolbar is always visible above the diagram. Best for documentation sites and dashboards where discoverability matters.

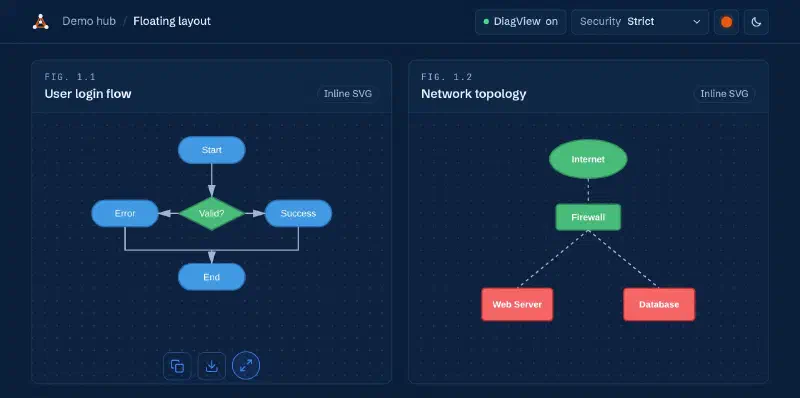

Floating Layout

#

A circular FAB button appears at the bottom-right. Controls hover in at the bottom of the diagram card. Clean and minimal.

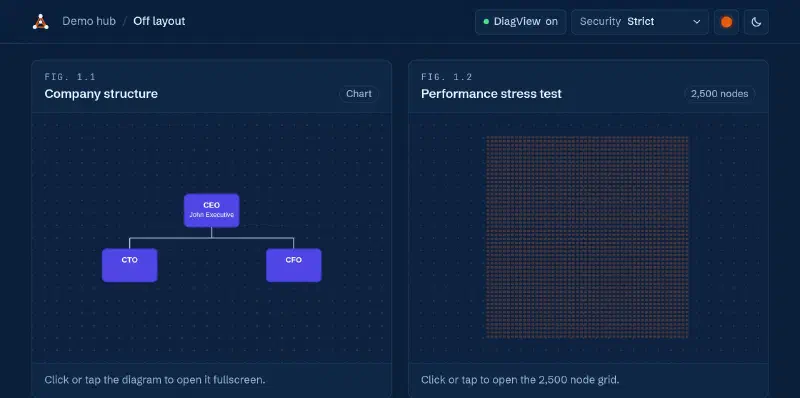

Off Layout

#

No controls are rendered. The diagram itself is the trigger — clicking it opens the fullscreen viewer.

Per-Diagram Overrides

#

Any diagram can override the global configuration using data-diagview-* attributes. This lets you mix layout modes and accent colors on a single page:

<!-- Purple accent with header layout for this diagram only -->
<div class="diagram"
  data-diagview-layout="header"
  data-diagview-accent="#8b5cf6"
  data-diagview-scale="6"
  data-title="My Architecture">
  <svg>...</svg>
</div>

<!-- This diagram uses the global defaults -->
<div class="diagram">
  <svg>...</svg>
</div>

Keyboard Shortcuts

#

All shortcuts are active when the fullscreen modal is open:

Under the Hood: Technical Decisions

#

The Search Engine

#

This was the feature I was most proud of. The search system:

1. Pre-Caches Candidates — On first open, queries all text elements and stores them in a WeakMap
2. Uses Dirty Checking — Before writing to the DOM, checks if values have changed
3. Batches Updates — All DOM mutations are wrapped in requestAnimationFrame

The result? Searching through diagrams with 2,500+ nodes is instant.

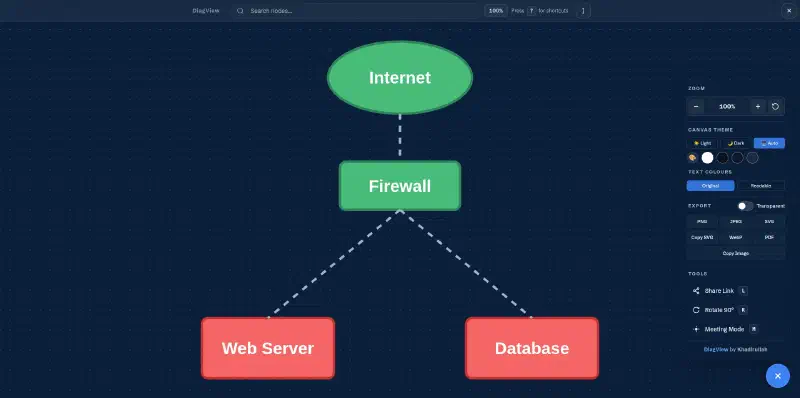

Fullscreen View

#

Clicking any diagram opens it in a fullscreen modal with all controls — zoom, pan, search, export, rotate, share, and minimap:

Text Select Mode

#

Press T in fullscreen and all SVG text nodes become selectable. You can highlight and copy node labels, edge text, or any text content inside the diagram. Press T again to disable. This is useful when you need to copy a specific service name or ID from a complex architecture diagram.

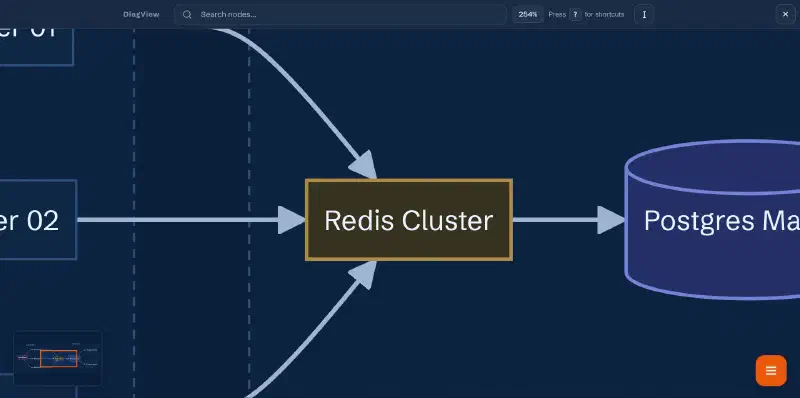

Minimap

#

When a diagram is zoomed in so that parts of it are outside the viewport, a minimap automatically appears in the corner. It shows your current viewport position within the full diagram, and you can click anywhere on the minimap to jump to that area. The minimap correctly handles both portrait and landscape diagrams.

Rotation

#

Press R to rotate the diagram 90° clockwise. This is particularly useful for tall diagrams (like vertical flowcharts) that would be easier to read horizontally. The rotation recalibrates the Panzoom instance so zoom and pan continue to work correctly after rotation.

SVG Sanitization

#

DiagView includes a three-tier security model for SVG content:

Watermarks

#

Watermarks are applied only during export/download — they never appear in the interactive viewer. You can configure them globally or per-diagram:

DiagView.init({
  watermark: {
    enabled: true,
    text: "Confidential",
    style: "corner",        // "corner" | "background" | "both"
    position: "bottom-right", // 6 positions + "four-sides"
    opacity: 0.2,
  },
});

The Export System

#

The export module handles edge cases:

• Robust Dimension Calculation — Uses getBBox() to find actual content area
• Cross-Origin Font Handling — Inlines Google Fonts for consistent exports
• High-DPI Scaling — Up to 10x resolution for print-quality images
• Transparent Background — PNG and WebP support transparent backgrounds
• PDF Export — Lazy-loads jsPDF from CDN only when needed

Export Formats

#

Optional Panzoom Dependency

#

I made panzoom an optional peer dependency:

• With panzoom: Full zoom, pan, touch gestures
• Without panzoom: Fullscreen, search, and export still work

This keeps DiagView usable even in constrained environments.

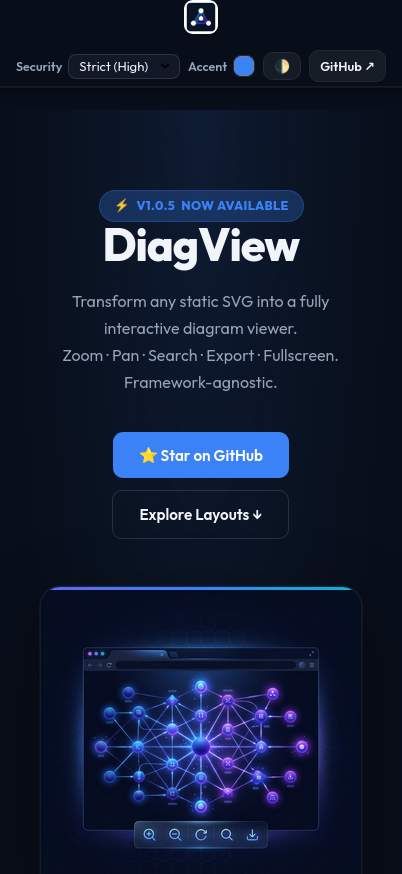

Mobile Support

#

DiagView is fully optimized for mobile — pinch-to-zoom, double-tap to reset, and Visual Viewport sync for stability on iOS and Android:

Button Styles

#

Four built-in styles for the diagram card buttons:

DiagView.init({
  ui: {
    buttons: { style: "transparent" }
  }
});

CI/CD Pipeline

#

One thing I invested heavily in was the automation pipeline. Every push to the repository triggers a GitHub Actions workflow that:

1. Lints the code with ESLint
2. Runs 169 unit tests with Jest
3. Builds the UMD and ESM bundles with Rollup
4. Publishes to npm on tagged releases (semantic versioning)
5. Deploys documentation to GitHub Pages

# Simplified GitHub Actions workflow
on:
  push:
    tags: ['v*']  # Triggers on version tags like v1.0.6

jobs:
  test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - run: npm ci
      - run: npm run lint
      - run: npm test          # 169 tests
      - run: npm run build

  publish:
    needs: test
    runs-on: ubuntu-latest
    steps:
      - run: npm publish       # Pushes to npm registry

The pipeline ensures that no broken code gets published. If any test fails, the publish step never runs. This is the same pattern used in production CI/CD — just applied to an open-source package.

The project also uses:

• Husky — pre-commit hooks that run lint-staged
• lint-staged — runs ESLint + Prettier only on changed files
• release-it — automated version bumping, changelog generation, and npm publishing
• size-limit — CI fails if bundle size exceeds the budget (34 KB UMD, 38 KB ESM)

Bundle Size

#

For context, that’s smaller than a single hero image. And it includes all CSS, SVG icons, and the entire UI framework.

Framework Support

#

DiagView is framework-agnostic — it works with plain HTML, React, Vue, Svelte, Angular, or any framework that renders SVGs to the DOM. It also supports Shadow DOM and Mermaid.js integration.

Full Configuration

#

DiagView.init({
  // Layout
  layout: 'floating',           // 'header' | 'floating' | 'off'

  // Theme (null = auto-detect)
  accentColor: null,
  backgroundColor: null,
  textColor: null,

  // UI
  ui: { buttons: { style: 'accent' } },
  showKeyboardHelp: true,
  showBranding: true,
  showMinimap: true,
  animateOpen: true,

  // Interaction
  naturalPanning: false,
  immersiveMode: false,
  rememberZoom: false,
  printFriendly: true,

  // Zoom limits
  maxZoomScale: 25,
  minZoomScale: 0.05,

  // Export
  highResScale: 4,               // 1–10
  mobileScale: 2,                // 1–5
  maxPixels: 16777216,           // 16MP safety cap

  // Security
  security: {
    mode: 'strict',
    allowOverrides: true,
    allowRemoteResources: false,
  },

  // Watermarks (export only)
  watermark: {
    enabled: false,
    text: '',
    style: 'corner',
    position: 'bottom-right',
    opacity: 0.2,
  },

  // Callbacks
  onExport: null,
  onError: null,
  onZoomChange: null,
  onOpen: null,
  onClose: null,
});

Try It Out

#

I built this to scratch my own itch. If you write technical documentation for a living, I think you’ll find it useful too.

• 🧪 Live Demo: khadirullah.github.io/diagview
• ⭐ GitHub: github.com/khadirullah/diagview
• 📦 NPM: npmjs.com/package/diagview

Have feedback or found a bug? Open an issue on GitHub.
